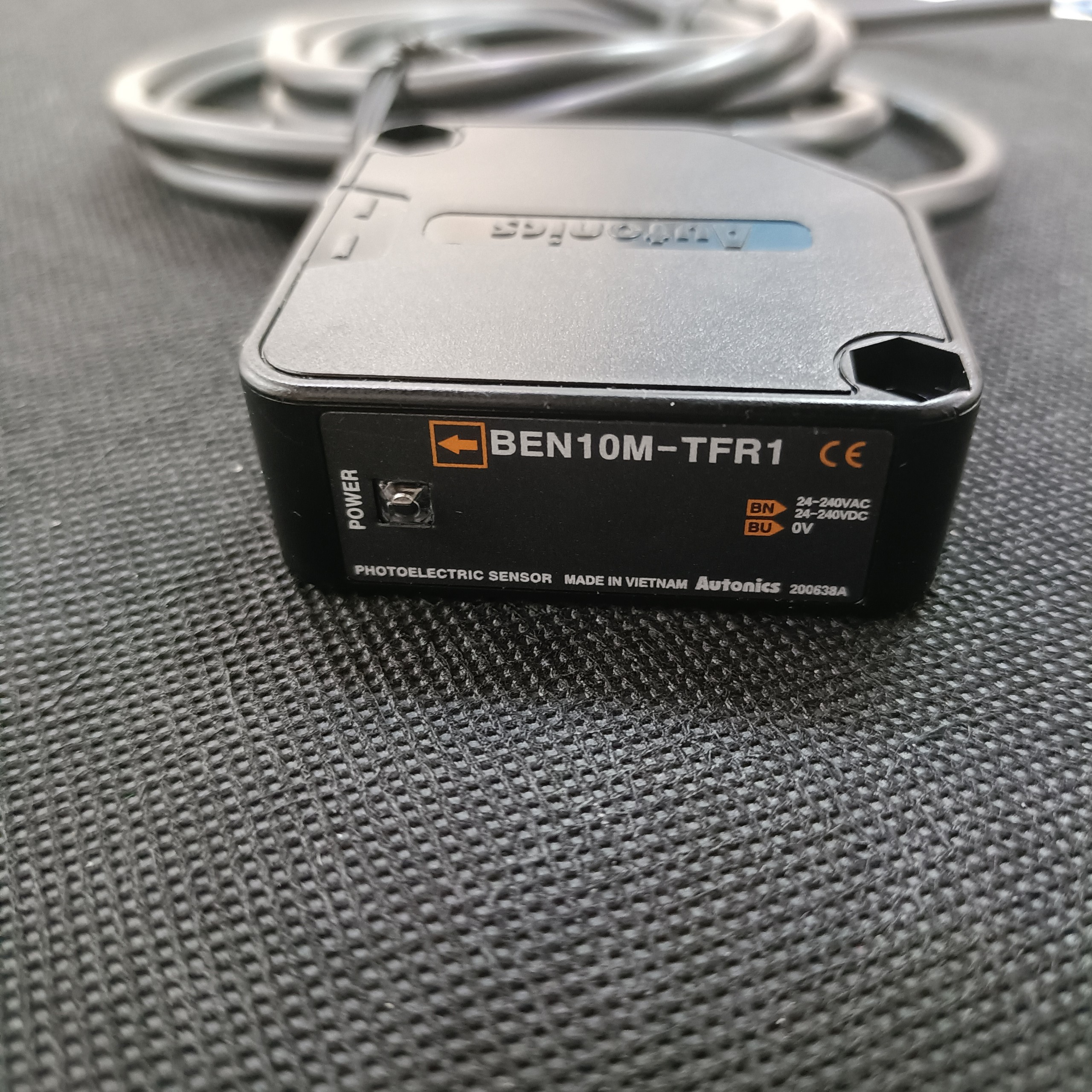

    Cảm biến quang Autonics BEN10M-TFR loại điện áp phổ thông AC DC

    Mã hàng: Cảm biến quang Autonics BEN10M-TFR
    5.0/5 (2 Reviews)

    • Loại phát hiện : Loại thu phát
    • Khoảng cách phát hiện : 10m
    • Khoảng cách phát hiện : Vật liệu đục min. Ø16mm
    • Nguồn sáng : LED hồng ngoại (850nm)
    • Thời gian đáp ứng : Max. 20ms
    • Nguồn cấp : 24-240VAC~ ±10% 50/60Hz, 24-240VDC ±10%(sóng P-P: max. 10%)
    • Chế độ hoạt động : Light ON/Dark ON(cài đặt bằng công tắc)
    • Ngõ ra điều khiển : Relay

    Trạng thái sản phẩm

    Còn Hàng

    Giá: Liên Hệ

    0865.301.239 - 0982.600.794

    AC/DC Photoelectric Sensor Autonics BEN10M-TFR - Korea

    Overview of BEN10M-TFR

    BEN series photoelectric sensors integrate amplifiers, universal DC and AC/DC power supply, sensitivity adjusters, and Light ON / Dark ON modes, helping users easily set up device configuration (except through-beam type).

    The BEN series is equipped with a dedicated photodiode IC, delivering high performance suitable for various applications.

    BEN10M-TFR-han-my-viet

    Key Features

    Universal AC/DC voltage model (relay contact output)

    Light ON/Dark ON mode switch

    Sensitivity adjuster (except the through-beam type)

    Stability indicator (green LED) and operation indicator (red LED)

    High performance specialized sensor IC

    Output type: relay contact (AC/DC type), NPN/PNP open collector (DC type)

    Specifications of Autonics BEN10M-TFR

    Weight includes packaging. The weight in parentheses is the weight of the device only.
    Temperature or humidity mentioned in the Environment section are measured under non-freezing or non-condensing conditions.



    Detection type

    Through-beam type

    Detection distance

    10m

    Detection target

    Opaque material, min. Ø16mm

    Light source

    Infrared LED (850nm)

    Response time

    Max. 20ms

    Power supply

    24-240VAC~ ±10% 50/60Hz, 24-240VDC  ±10%(ripple P-P: max. 10%)

    Current consumption

    Emitter/Receiver: Max. 4VA

    Operating mode

    Light ON/Dark ON(setting by switch)

    Control output

    Relay

    Connection type

    Cable type(Ø5, 2m)

    Environment_Ambient light

    Sun light: Max. 11,000lx,
    Incandescent lamp: Max. 3,000lx
    (received light)

    Environment_Ambient temperature

    -20 ~ 65℃, storage: -25 ~ 70℃

    Protection Structure

    IP50

    Environment_Ambient humidity

    35 ~ 85%RH, storage: 35 ~ 85%RH

    Material

    Case, case cover: Heat resistant Acrylonitrile butadiene styrene,
    Detection part: Polycarbonate(with polarizing filter: polymethyl methacrylate),
    Bracket: Steel Plate cold commercial, Bolt: steel chromium molybdenum,
    Nut: steel chromium molybdenum

    Accessories

    Adjustable driver, fixing bracket, bolts, nuts

    Weight

    ≈ 354g



    Code Selection Table of  BEN10M-TFR

    ben-ban-chon-ma

    Dimensions of BEN Series

    ben-kich-thuoc



    Wiring Diagram of BEN10M-TFR



    ben-ket-noi-1

    ben-ket-noi-2



    Applications of Photoelectric Sensor Autonics BEN10M-TFR

    The Autonics BEN10M-TFR photoelectric sensor, a universal AC/DC voltage type, can be used for various applications in industries and automation, including:

    Conveyors and sorting, Alarms and safety, Measurement and inspection, Printing and packaging, Automotive industry, Electronics industry, Textile industry, Food industry
